Vibration Monitoring System
BeanAir / Similar IoT — Wireless Real-Time Monitoring
Falcon Geo-Monitoring's wireless vibration monitoring system measures ground and structural vibration in real-time, capturing Peak Particle Velocity (PPV), acceleration, and frequency data critical for protecting sensitive structures and surrounding infrastructure from construction-induced vibrations.
Built around wireless IoT technology with LoRa / RF communication, our system supports remote monitoring with automated FFT and velocity reporting, log file generation, and instant email alerts when threshold limits are exceeded.
Technical Specifications
Frequency Range
0 - 1000 Hz operating range covering the full spectrum of construction and traffic vibrations.
Acceleration Range
±2g to ±16g configurable acceleration capture for low-amplitude to high-impact events.
Output Data
PPV (mm/s), acceleration, and frequency — delivered as live readings and historical logs.
Communication
Wireless IoT via LoRa / RF mesh — no hardwired cabling, easy site redeployment.

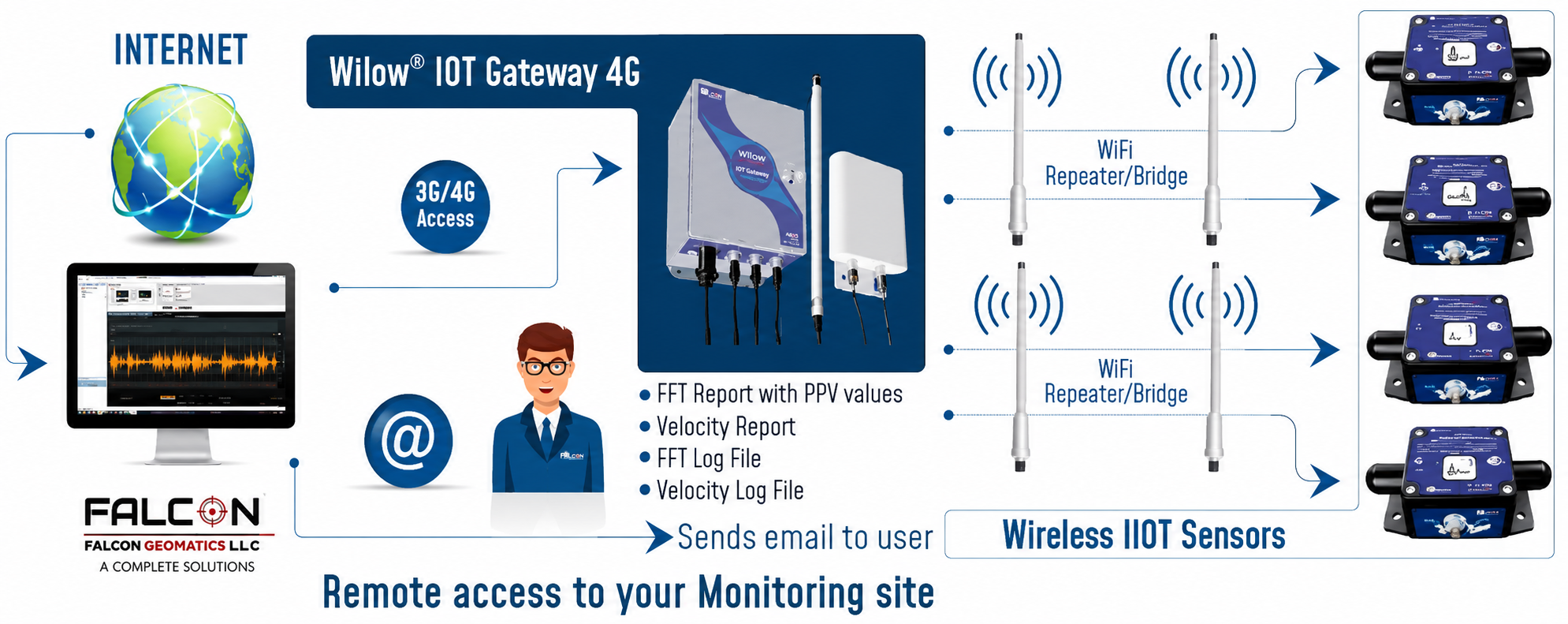

System Architecture
Our deployment uses the Wilow® IoT Gateway 4G to bridge wireless IIoT sensors to the cloud. WiFi repeaters extend network coverage across large construction sites, ensuring uninterrupted data streaming back to Falcon Geo-Monitoring's monitoring platform for remote access from anywhere.
Real-Time Reporting & Data Outputs
Every monitored event is automatically processed and delivered through multiple reporting channels:
FFT Report with PPV Values
Frequency-domain analysis with peak particle velocity calculations.
Velocity Report
Time-history velocity data for compliance verification.
FFT & Velocity Log Files
Raw data logs available for download and engineering analysis.
Automated Email Alerts
Instant notifications when vibration exceeds preset thresholds.
Live PPV Dashboard
Our monitoring dashboard displays particle velocity against frequency in real-time, with current values and historic maximums tracked for every channel. Engineers and project managers access the live data via web or mobile from any location.
- Live PPV, ZC Frequency, Peak Acceleration
- Peak Displacement tracking in real-time
- Timestamp logging on every event
Applications
Our vibration monitoring is deployed across high-risk activities where ground-borne vibration could damage adjacent structures or disrupt sensitive operations:
3 Simple Steps to Process
We deploy fast and start streaming data from day one — with zero hardwiring on your site.
Site Assessment
Identify monitoring locations and vibration threshold limits.
Wireless Setup
Deploy IoT sensors, gateway, and repeaters across the site.
Remote Monitoring
Live PPV, FFT reports, and email alerts to your team.
Customer Benefits
Protect adjacent structures, demonstrate regulatory compliance, and minimize project disputes with auditable, real-time vibration evidence.
- Zero hardwiring — wireless mesh deployment
- Instant compliance reporting (FFT + Velocity)
- Email alerts protect against threshold breach
- Remote access from anywhere via web dashboard
